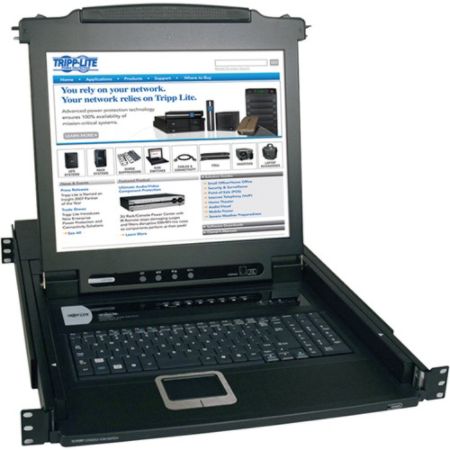

Tripp Lite 8-Port 1U Console KVM Switch, B020-008-17 Item # 614190

 |
Tripp Lite 8-Port 1U Console KVM Switch, B020-008-17
$ 1099 .99 / each (*) $1099.99
Was: $1,276.99 / each  (You Save: $177.00)
After Instant Savings
Prices effective through 05/12/2016.
In Stock
Free delivery
Estimated delivery 3-7 business days

  • 8-port console KVM switch features a 17" LCD screen.
  • Easily switch ports using the push buttons on the console, the On Screen Display (OSD), or hot key commands.

    Description

    Tripp Lite's B020-008-17 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. The B020-008-17 has a built-in 17" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers. This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit(one of each is included). An extra HD15 port allows an additional VGA monitor to be connected. Two PS/2 ports also are included on the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. When not in use, the B020-008-17 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems (special keys on Mac and Sun keyboards are not supported). Heavy-duty steel housing stands up to frequent use.

    • 8-port console KVM switch features a 17" LCD screen.
    • Easily switch ports using the push buttons on the console, the On Screen Display (OSD), or hot key commands.
    • Includes one extra HD15 and two PS/2 ports on the rear of the unit.
    • Constructed of heavy-duty steel.
    • Compatible with all major operating systems except Mac and Sun.
    • You can control up to 504 computers from this single console by daisy chaining additional B022016 or B022U16 16-port KVM switches (additional switches not included).
    • Specifications:  Input Voltage: 230 V AC, Power Consumption: 24 W, Weight (approximate): 30.00 lb, Dimensions: 1.75"H x 16.75"W x 24"D, Number of Computers Supported: 8, Number of VGA Ports: 1, Number of PS/2 Ports: 2, Screen Resolution: 1280 x 1024, Model Number: B020-008-17.
    Back To Top

    Product Details

    Item # 614190
    OfficeMax # 23556812
    Manufacturer # J11446
    Number of PS/2 Ports 2
    diagonal screen size 17 in.
    Screen Mode SXGA
    KVM Switch Yes
    height 1.8 in
    Certifications & Standards UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
    width 20.4 in
    Product Line NetDirector
    package contents NetDirector B020-008-17 Rackmount LCD with KVM; 6 ft. PS/2 KVM Cable Kit; 6 ft. USB KVM Cable Kit; C13 to 5-15P Power Cord; RJ11 to DB9 Firmware Upgrade Cable; Owners Manual CD
    depth 19 in
    Product Name NetDirector B020-008-17 Rackmount LCD with KVM
    manufacturer Tripp Lite
    postconsumer recycled content 0
    VGA Yes
    weight 30 lb
    brand name Tripp Lite
    Power Consumption 22.80 W; 24 W
    Number of VGA Ports 1
    Number of Computers Supported 8
    Input Voltage 120 V AC; 230 V AC
    Pointing Device Type TouchPad; Mouse
    screen resolution 1280 x 1024
    PS/2 Port Yes
    Management Port Yes
    total recycled content 0
    Platform Supported PC; Mac; Sun
    color black
    warranty length 1-year limited
    model name B020-008-17
    Display Screen Type LCD
    Show More ▾
    Back To Top

      Customer Reviews

      Rated 4.5 out of 5�by 2 reviewers.
      Rated 4 out of 5�by Good item This console is one of the best I've used. It's well made, tough and easy to use. I have a cage with 7 servers and this does the job nicely. October 28, 2014
      Rated 5 out of 5�by No problem setting it up out of the box. The monitor has a good sharp image, set up is a breeze. It is simple to mount in the server rack. September 30, 2012
